Printable Heat Loss Workbook

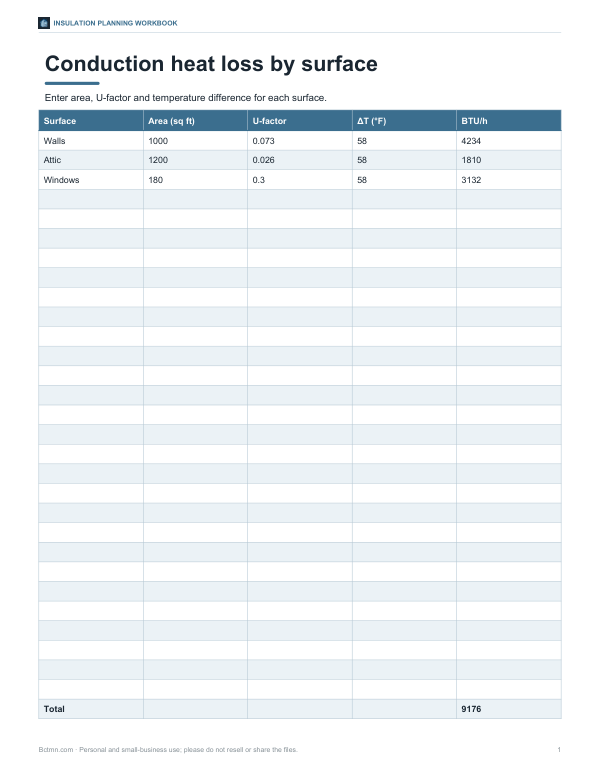

This workbook is for anyone tracking heat loss through building surfaces during insulation planning, energy checks, or rough load estimates. It includes a simple table for conduction heat loss by surface, with columns for Surface, Area in square feet, U-factor, temperature difference in degrees Fahrenheit, and BTU per hour. Example rows are filled in for Walls, Attic, and Windows so the layout is easy to follow.
Free printable · PDF
- 2 pages
- US Letter — choose “Fit to page” for A4
- PDF, 104 KB
Free for personal, family and classroom use.
Use it by entering each surface, its area, the U-factor, and the temperature difference. The sheet calculates BTU/h for each line so you can compare where heat loss is highest and see which parts of the building matter most.
Good for
- Estimate heat loss by building surface
- Compare walls, attic, and window losses
- Support insulation planning and load checks
Tip: Print one copy per building zone so you can compare surfaces room by room.
